GLADIATOR HDD RIGS

AVAILABLE MODELS: G10 • G20 • G30 • G40 • G60 • G100 • G130

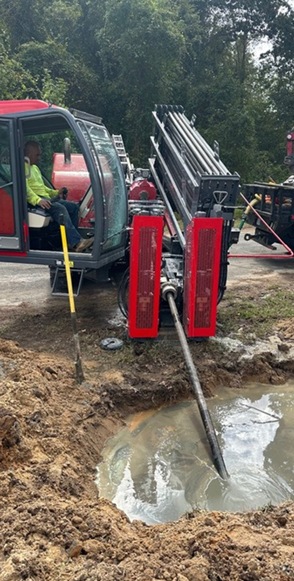

BUILT TO PERFORM. PROVEN IN THE GROUND.

The Gladiator lineup includes a full range of horizontal directional drills designed for every level of production from compact utility machines to custom-built rigs delivering up to 2 million pounds of thrust and pullback. Whatever the ground conditions, bore length, or project scale, Gladiator can deliver a solution engineered to meet your exact requirements. Standard models or fully customized builds

WHY CREWS CHOOSE GLADIATOR

  • • Consistent torque under load; bite and stay on line
  • • Stable thrust / pullback for steady production
  • • Clean operator visibility & controls
  • • Easy service access to daily maintenance points
  • • Reliable in tough formations clay, shale, cobble
  • • Built to run all day without fighting the machine
  • • Parts are readily available and most parts are at your local parts stores.
  • • Service is second to none.
  • PERFORMANCE WITHOUT LIMITS

WHICH GLADIATOR DRILL FITS YOUR NEEDS?

ENGINEERED BY DRILLERS FOR DRILLERS


G10
11,240 lbs
1,659 ft-lb
59 hp Yanmar
20 gpm @870psi
48 rods
G20
20,740 lbs
2,275 ft-lb
72 hp Yanmar
30 gpm @1080psi
48 rods
G30
29,380 lbs
4,052 ft-lb
147 hp Cummins
52 gpm @1160psi
65 rods
G40
40,465 lbs
5,963 ft-lb
167 hp Cummins
66 gpm @1160psi
40 rods

G60
62,946 lbs
9,219 ft-lb
202 hp Cummins
125 gpm @1160psi
40 rods
G100
101,838 lbs
14,013 ft-lb
260 hp Cummins
175 gpm @1160psi
40 rods
G130
134,885 lbs
15,448 ft-lb
280 hp Cummins
264 gpm @1160psi
24 rods

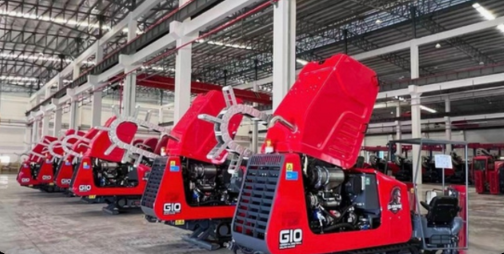

GLADIATOR G10

SPECS

THRUST/PULLBACK: 11,240 FT-LBS

THRUST/PULLBACK SPEED: 200 FT/MIN

TORQUE: 1659 FT-LBS

ENGINE: 59 HP YANMAR

FLUID SYSTEM: 20 GPM @ 870 PSI

ROTATION: 215 RPM

ENTRY ANGLE: 20°

SUGGESTED CROSSING LENGTH: ≤328 FT

SUGGESTED REAMING DIAMETER: ≤15.74"

ROD RACK: 48-ROD ONBOARD RACK

ROD SIZE: 1.65 × 71.85"

OPTIONAL ROD LOADER ARMS (MODEL G10L)

SYSTEMS: AUTO ANCHOR, MUD FLOW ADJUST, SHUT-OFF VALVES

SAFETY: ANTIFREEZE TANK, STRIKE ALERT, SEAT SENSOR

CONTROLS: WIRELESS REMOTE WITH HYDRAULIC LOCKOUT SHUT-OFF

WEIGHT: 8,157 LB

DIMENSIONS: 166.14" L 57.48" W 62.59" H

GLADIATOR G20

SPECS

THRUST/PULLBACK: 20,740 FT-LBS

THRUST/PULLBACK SPEED: 200 FT/MIN

TORQUE: 2,275 FT-LBS

ENGINE: 72 HP YANMAR

FLUID SYSTEM: 30 GPM @ 1080 PSI

ROTATION: 223 RPM

ENTRY ANGLE: 20°

SUGGESTED CROSSING LENGTH: ≤450 FT

SUGGESTED REAMING DIAMETER: ≤15.74"

ROD RACK: 48-ROD ONBOARD RACK

ROD SIZE: 2.06" X 120"

CONSTRUCTION: STEEL HOOD, ROD LOADER ARMS

SYSTEMS: AUTO ANCHOR, MUD FLOW ADJUST, SHUT-OFF VALVES

SAFETY: ANTIFREEZE TANK, STRIKE ALERT, SEAT SENSOR

CONTROLS: WIRELESS REMOTE WITH HYDRAULIC LOCKOUT SHUT-OFF

WEIGHT: 8,998 LB

DIMENSIONS: 166.14" L 57.48" W 62.59" H

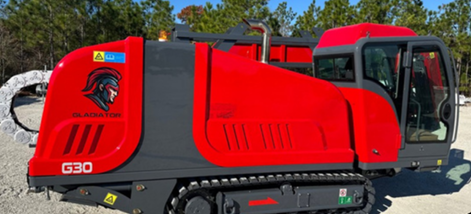

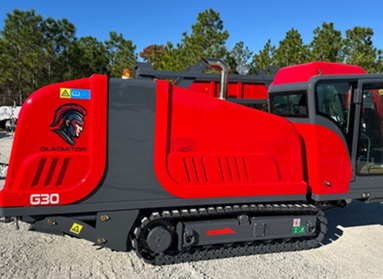

GLADIATOR G30

SPECS

THRUST/PULLBACK: 29,380 FT-LBS

THRUST/PULLBACK SPEED: 209 FT/MIN

TORQUE: 4,052 FT-LBS

ENGINE: 147 HP CUMMINS

FLUID SYSTEM: 52 GPM @ 1080 PSI

ROTATION: 234 RPM

ENTRY ANGLE: 20°

SUGGESTED CROSSING LENGTH: ≤656 FT

SUGGESTED REAMING DIAMETER: ≤27.56"

ROD RACK: 65-ROD ONBOARD RACK

ROD SIZE: 2.36 × 118.11"

CONSTRUCTION: STEEL HOOD, ROTATING CAB, ROD LOADER ARMS

CARRAGE SYSTEM: DUAL RACK & PINION

SYSTEMS: AUTO ANCHOR, MUD FLOW ADJUST, SHUT-OFF VALVES

SAFETY: ANTIFREEZE TANK, STRIKE ALERT, SEAT SENSOR

CONTROLS: WIRELESS REMOTE WITH HYDRAULIC LOCKOUT SHUT-OFF

WEIGHT: 18,740 LB

DIMENSIONS: 227.55" L 84.25" W 93.70" H
